REPAIR COLLAR FOR OTHER BOLTS
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › REPAIR COLLARS
Download sheet in pdf format

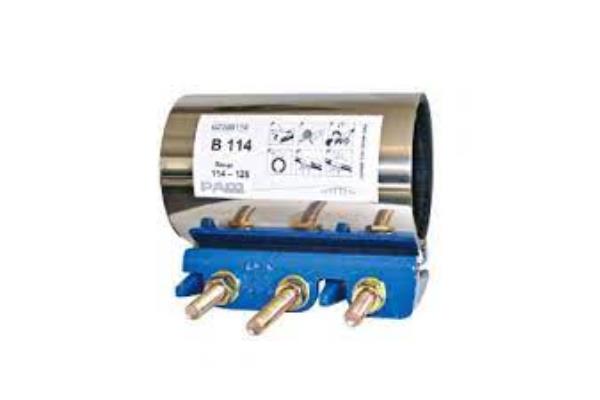

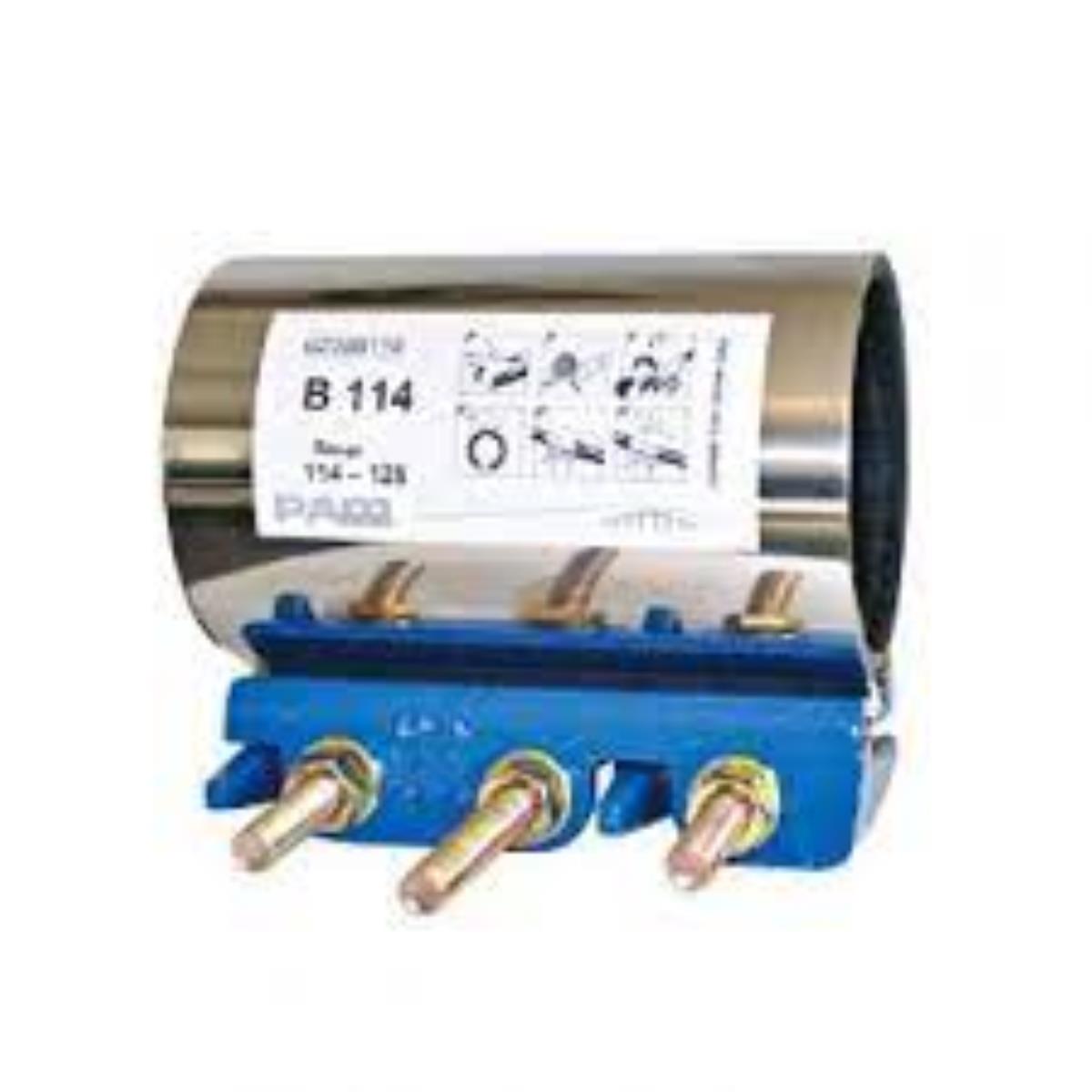

Three-bolt repair collar for repairing localized breaks and small holes in any pipe. Stainless steel band.
Ductile iron clamp with Epoxy painting, 250micron thickness.
EPDM gasket.
Galvanized steel bolts.
Band width 200mm
Maximum operating temperature: 40°C
Closing fields available:
48-56
56-64
60-68
78-88
98-108
108-118
114-126
126-138
138-150
140-153
150-162
162-174
168-182
174-186
186-198
198-210
210-223
222-234
234-246
243-255
260-272
273-285
285-297
298-310
316-328
327-340
342-355
353-365
368-380
378-390
Ductile iron clamp with Epoxy painting, 250micron thickness.
EPDM gasket.
Galvanized steel bolts.
Band width 200mm
Maximum operating temperature: 40°C
Closing fields available:
48-56
56-64
60-68
78-88
98-108
108-118
114-126
126-138
138-150
140-153
150-162
162-174
168-182
174-186
186-198
198-210
210-223
222-234
234-246
243-255
260-272
273-285
285-297
298-310
316-328
327-340
342-355
353-365
368-380
378-390
