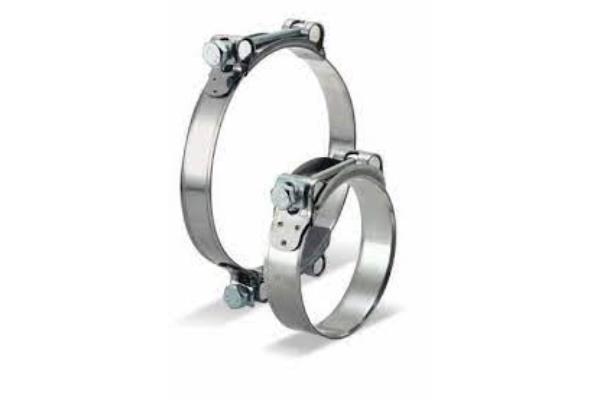

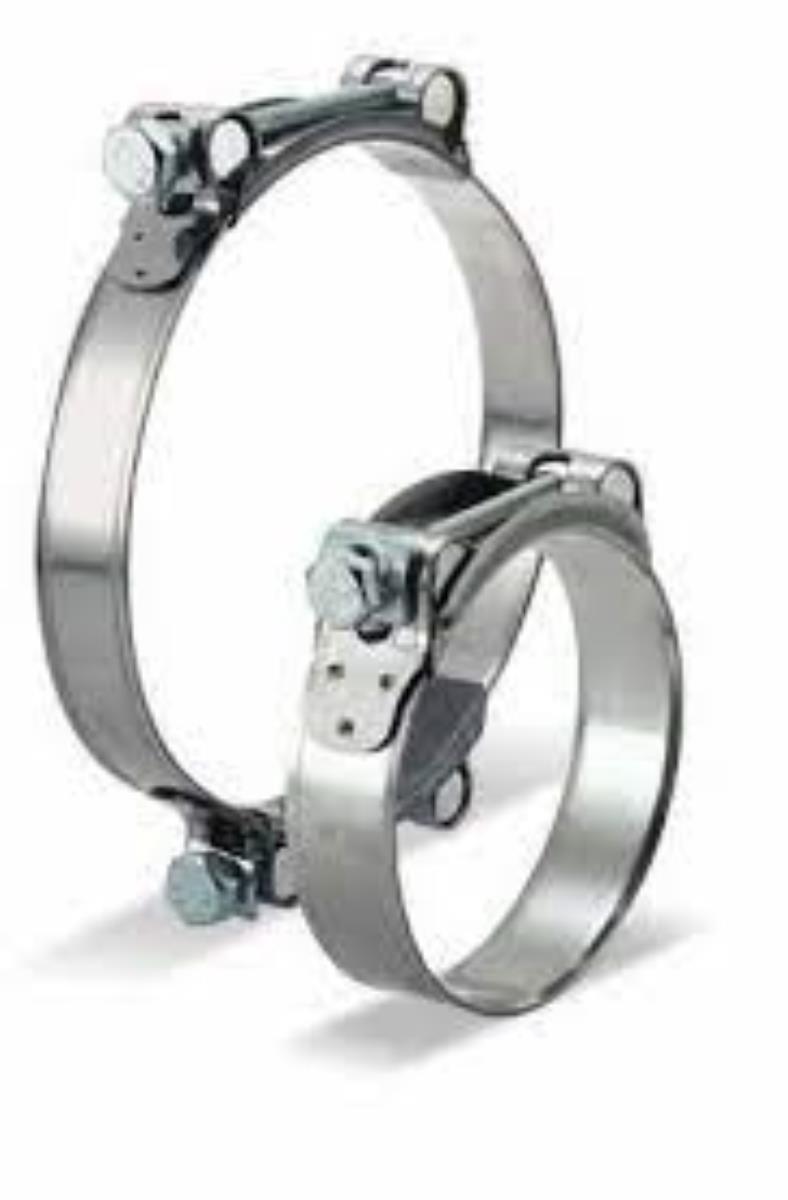

HEAVY DOUBLE LOCK CLAMP
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › HEAVY CLAMP
Download sheet in pdf format
Heavy duty bolt collars on multiple applications
The NORMACLAMP® GBS collar is particularly suitable for use in applications where hose clamps must meet high tightening requirements. in particular when flexible suction and/or delivery hoses must be connected and fixed, complete with plastic or steel inserts and high Shore hardness values. They are particularly suitable for use on commercial and special vehicles.
NORMACLAMP® GBS collars stand out for the very high tension force of the belt.
The assembly of the collars is facilitated by the use of standard manual, pneumatic or electric tools.
Benefits at a glance • Double the breaking torque • Triple the belt tension Applications • Mechanical engineering • Agricultural machinery • Chemical industry • Construction machinery • Irrigation systems • Engine construction • Shipbuilding • Pumps and filters • Railway industry • Mining industry .
Newly designed bolt with integrated spacer and better performance. The W5 version is equipped with a hexagon socket head bolt.
Reinforced pawls – to withstand high tightening torques
Mechanical clinching – no welding points, elimination of the risk of contact corrosion
Bridge – tube protection.
Solid tape with rounded edges used to prevent injury and damage to the hose surface.
SIZES AVAILABLE IN THE STANDARD VERSION IN W2:
Resistance to corrosion in salt spray minimum 72 hours
PACKS OF 10 PIECES
The NORMACLAMP® GBS collar is particularly suitable for use in applications where hose clamps must meet high tightening requirements. in particular when flexible suction and/or delivery hoses must be connected and fixed, complete with plastic or steel inserts and high Shore hardness values. They are particularly suitable for use on commercial and special vehicles.
NORMACLAMP® GBS collars stand out for the very high tension force of the belt.
The assembly of the collars is facilitated by the use of standard manual, pneumatic or electric tools.
Benefits at a glance • Double the breaking torque • Triple the belt tension Applications • Mechanical engineering • Agricultural machinery • Chemical industry • Construction machinery • Irrigation systems • Engine construction • Shipbuilding • Pumps and filters • Railway industry • Mining industry .
Newly designed bolt with integrated spacer and better performance. The W5 version is equipped with a hexagon socket head bolt.
Reinforced pawls – to withstand high tightening torques
Mechanical clinching – no welding points, elimination of the risk of contact corrosion
Bridge – tube protection.
Solid tape with rounded edges used to prevent injury and damage to the hose surface.
SIZES AVAILABLE IN THE STANDARD VERSION IN W2:
Resistance to corrosion in salt spray minimum 72 hours
PACKS OF 10 PIECES
| FIELD OF TIGHTENING | LENGTH BAND | BOLT |
| 70-85 | 24mm | M8 |
| 85-100 | ||
| 100-120 | ||
| 120-140 | 26mm | M10 |
| 140-160 | ||
| 160-180 | ||
| 200-220 | ||
| 220-240 | ||
| 240-260 | ||
| 260-280 | ||
| 280-300 | ||
| 300-325 | ||
| 325-350 | ||
| 350-375 | ||
| 375-400 | ||
| 400-425 | ||
| 425-450 | ||
| 450-475 | ||
| 475-500 |
