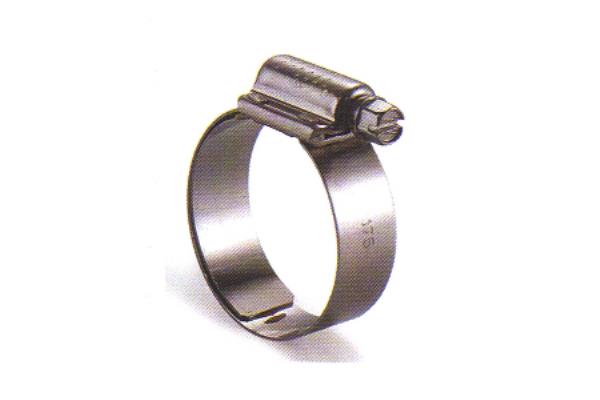

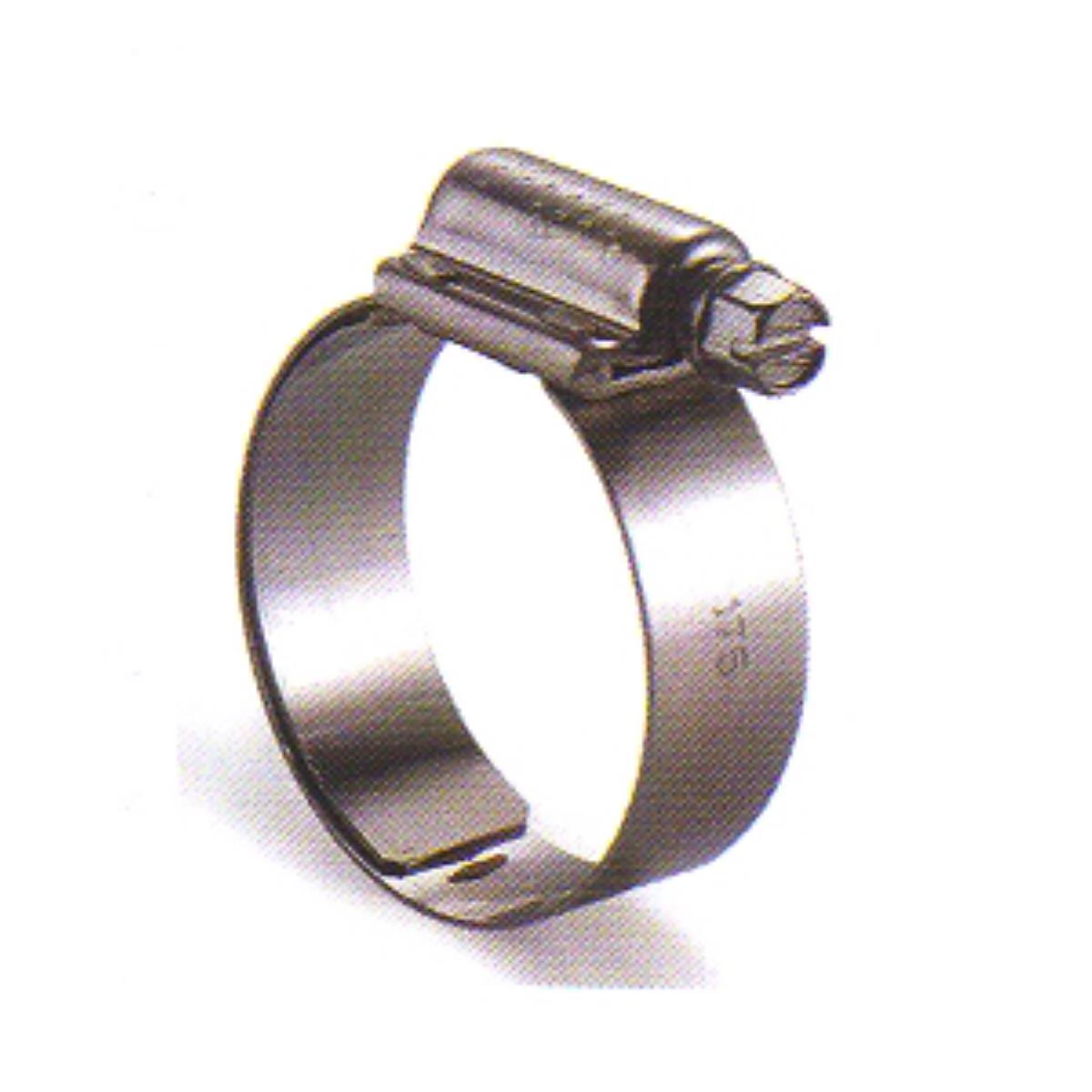

Worm screw clamps with high tightening torque, superior to common hose clamps, up to three times the SAE resistance values of common clamps. Smooth band with rounded edges
The sturdiness and the screw engaged on 8 teeth of the rack make them suitable for applications with high pressures and strong vibrations.
Optimal tightening band 16 Nm. Breaking torque greater than 20 Nm.
Completely made of W4 AISI 304 austenitic stainless steel

CLOSURE FIELD
mm
PACKAGING

pieces
25-45 100
32-54 100
45-67 50
57-79 50
70-92 50
83-105 25
95-118 25
108-130 10
121-143 10
133-156 10
146-168 10
159-181 10
172-194 10
184-206 10
197-219 10
210-232 10
248-270 10
