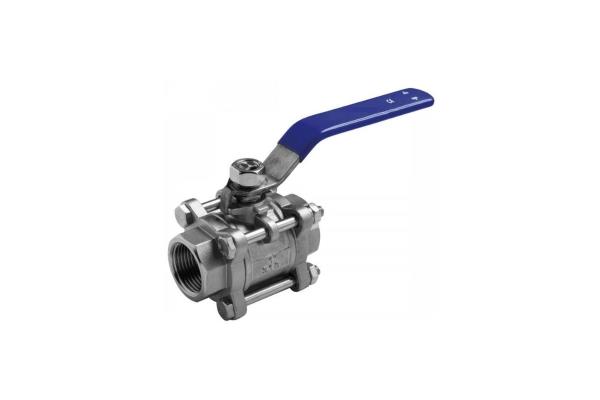

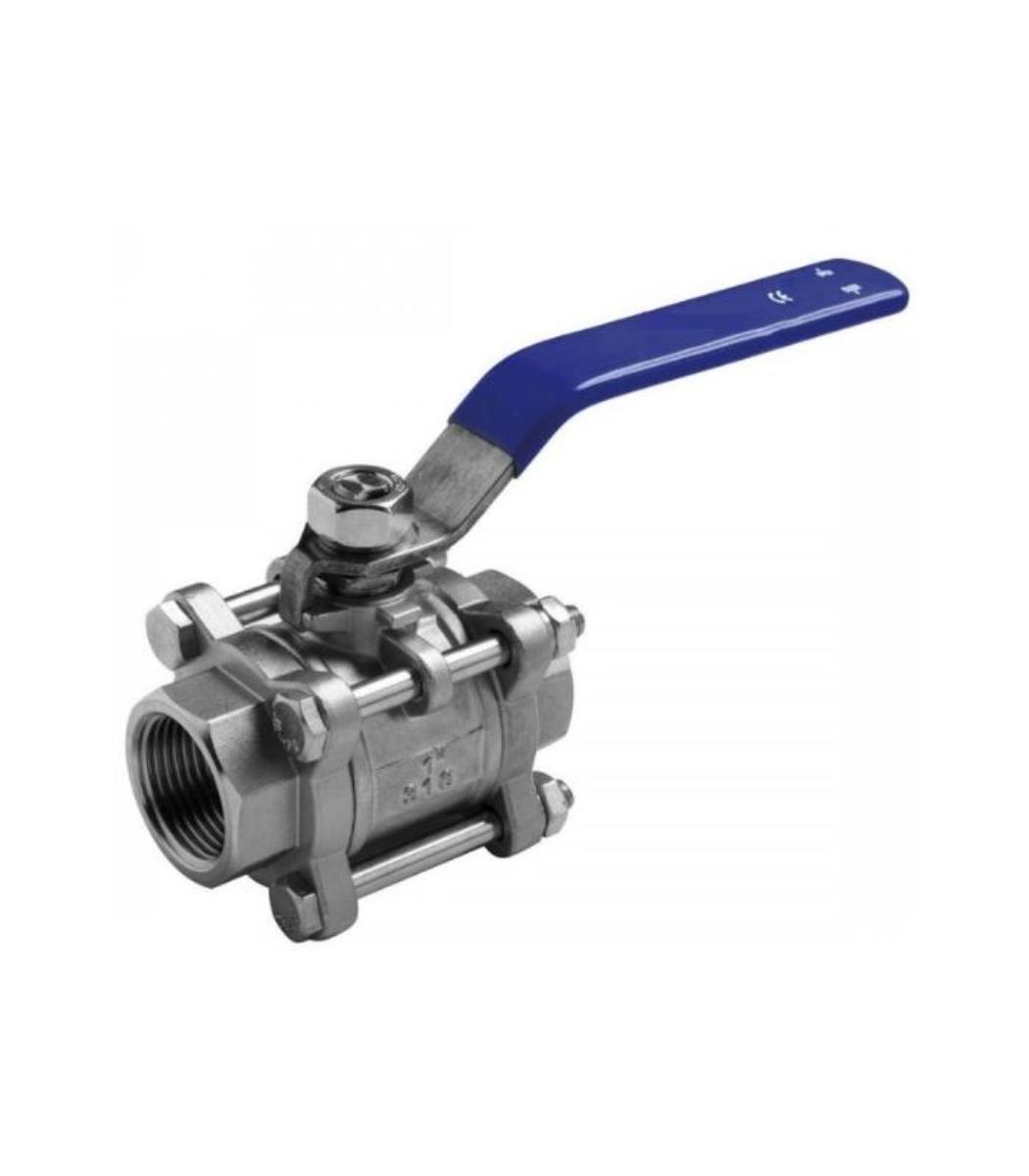

VALVE 3 PIECES AISI316 FF
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › STAINLESS STEEL BALL VALVE
Download sheet in pdf format
Code: 4037
Three-piece ball valve in AISI 316 stainless steel with full bore threaded gas female-female DIN 2999 PN16. Body and ball in stainless steel.
Also available with pocket solder connections (SW version).
For use at temperatures above 80°C please consult us.
Three-piece ball valve in AISI 316 stainless steel with full bore threaded gas female-female DIN 2999 PN16. Body and ball in stainless steel.
Also available with pocket solder connections (SW version).
For use at temperatures above 80°C please consult us.
| THREAD DIMENSIONS | DN |
| 1/4" | 8 |
| 3/8" | 10 |
| 1/2" | 15 |
| 3/4" | 20 |
| 1" | 25 |
| 1"1/4 | 32 |
| 1"1/2 | 40 |
| 2" | 50 |
| 2"1/2 | 65 |
| 3" | 80 |
