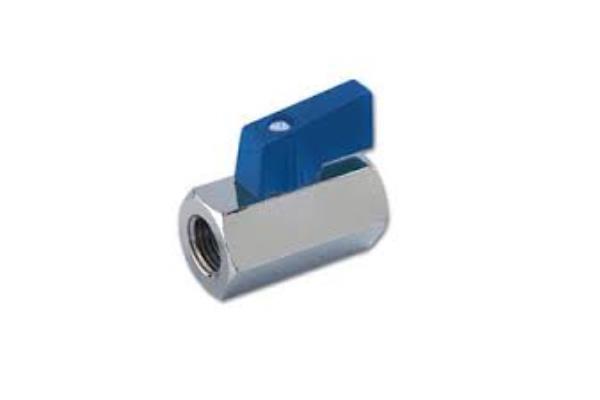

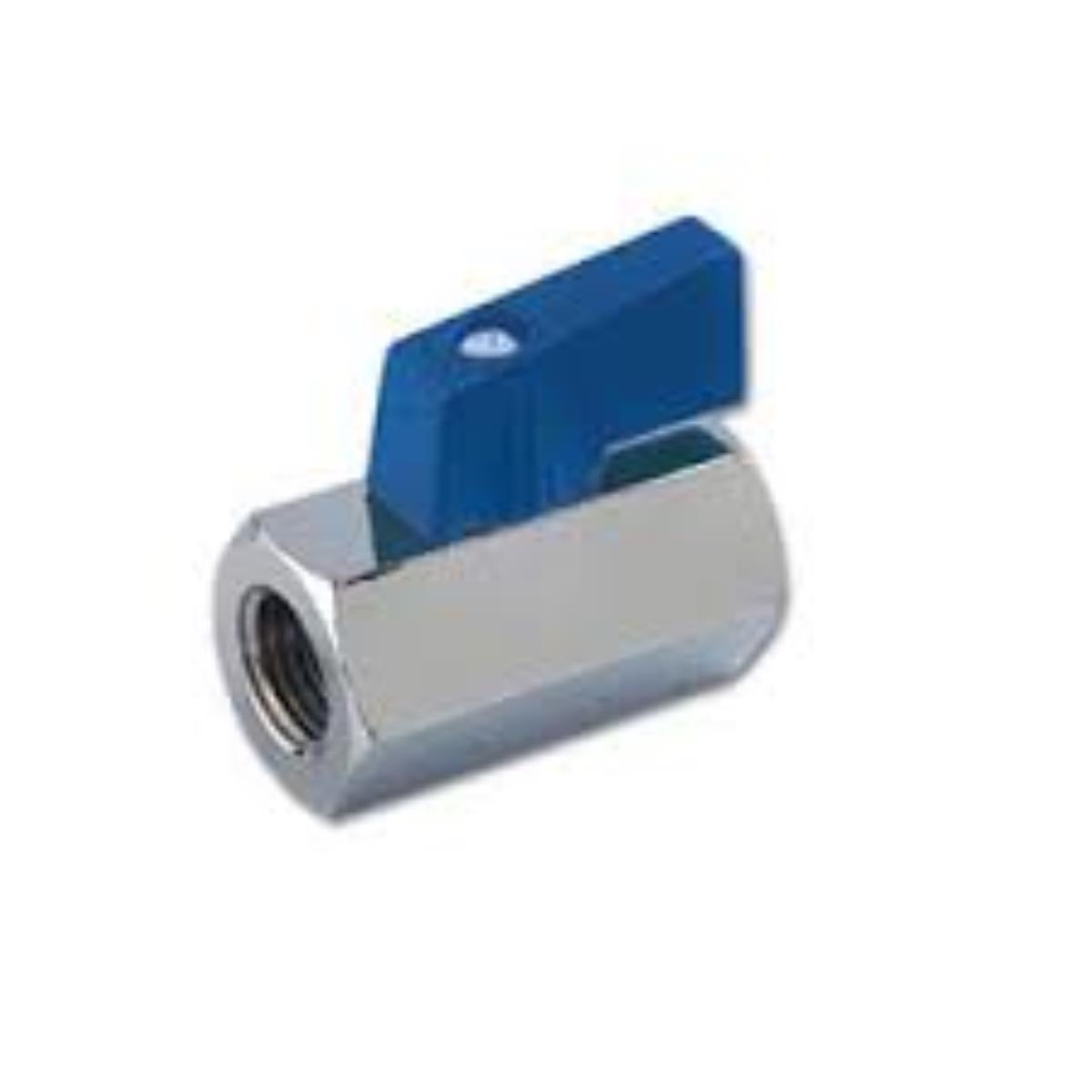

FEMALE STAINLESS STEEL MINI VALVE
ONLINE CATALOGUE
›
BALL VALVES - GATE VALVES
›
STAINLESS STEEL BALL VALVE
Request a quote
Download sheet in pdf format
Code:
540/I
Ball valve for every hydraulic and pneumatic system
Material in AISI 316 STAINLESS STEEL
PTFE gasket
Operating temperature: -25° +180°C
Maximum operating pressure 63 bar
ISO228 FEMALE - FEMALE thread connection
Code
Dimension
inch
Pressure
Cafe
packaging
510540/I01/4
1/4"
63
10
510540/I03/8
3/8"
63
10
510540/I01/2
1/2"
63
10
510540/I03/4
3/4"
63
5
510540/I0_1
1"
63
5
Related products

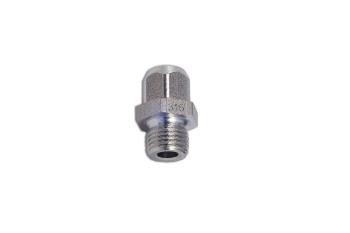

AISI316 MALE HOSE PORT
