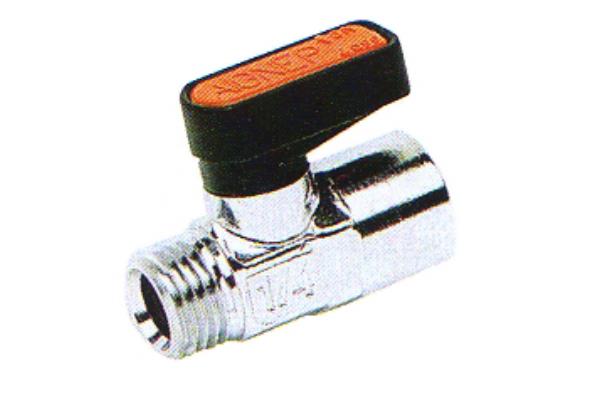

Mini valve male - female cylindrical thread
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › MINI BALL VALVES IN BRASS
Download sheet in pdf format
Code: 6410
MALE - FEMALE brass mini ball valve with cylindrical gas thread compliant with ISO 228 Class A
BODY and BALL construction in chromed brass. PA66 handle. Ball seat gasket in PTFE - Shaft gasket in NBR
Maximum pressure 20 bar
Operating temperature: -20° +80° C.
Compatible fluids: Compressed air, water, oils
MALE - FEMALE brass mini ball valve with cylindrical gas thread compliant with ISO 228 Class A
BODY and BALL construction in chromed brass. PA66 handle. Ball seat gasket in PTFE - Shaft gasket in NBR
Maximum pressure 20 bar
Operating temperature: -20° +80° C.
Compatible fluids: Compressed air, water, oils
| Code item | Measures |
|---|---|
| 5164101/8 | 1/8" |
| 5164101/4-1/8 | 1/4-1/8 |
| 5164101/4 | 1/4" |
| 5164103/8 | 3/8" |
| 5164101/2 | 1/2" |
| 5164103/4 | 3/4" |
