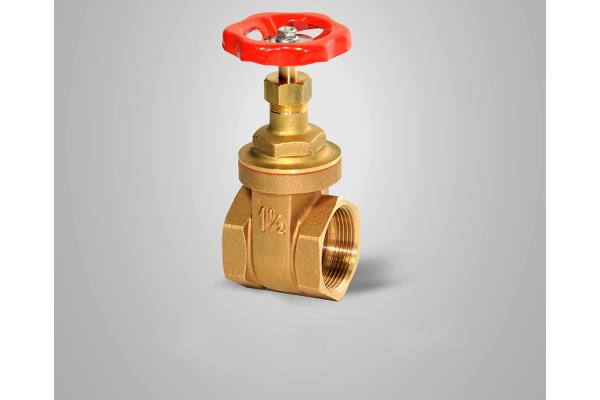

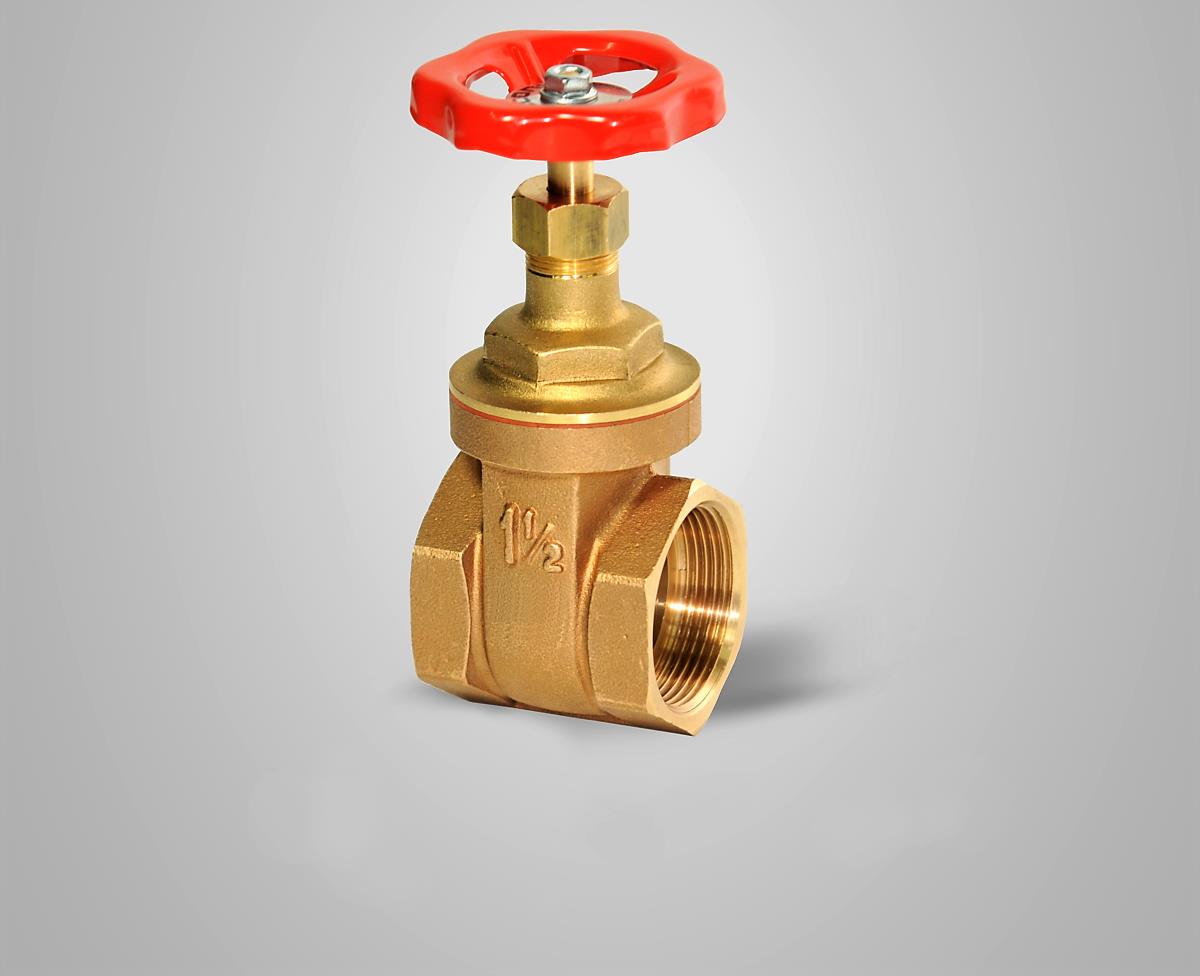

THREADED GATE VALVE
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › BRASS HANDWHEEL GATE VALVES
Download sheet in pdf format
Code: 99A
Heavy pressed brass gate valve suitable for any type of plumbing and heating system, ideal for hot/cold water and various oils.
TOTAL PASSAGE PN16
Minimum and maximum operating temperature: -0° +80°C
Threaded connection according to standards: ISO 228 - DIN 259 - BS 2779.
Gate valve body, sleeve, seal in OT CW 617N
Steel handwheel.
Fiber gland seal, adjustable gland
Heavy pressed brass gate valve suitable for any type of plumbing and heating system, ideal for hot/cold water and various oils.
TOTAL PASSAGE PN16
Minimum and maximum operating temperature: -0° +80°C
Threaded connection according to standards: ISO 228 - DIN 259 - BS 2779.
Gate valve body, sleeve, seal in OT CW 617N
Steel handwheel.
Fiber gland seal, adjustable gland
| Code | Dimensions | Pressures Cafe | Packaging |
|---|---|---|---|
| 510A99001/4 | 1/4" | 16 | 20 |
| 510A99003/8 | 3/8" | 16 | 20 |
| 510A99001/2" | 1/2" | 16 | 20 |
| 510A99003/4" | 3/4" | 16 | 20 |
| 510A991" | 1" | 16 | 10 |
| 510A991"-1/4 | 1"1/4 | 16 | 10 |
| 510A991"-1/2 | 1"1/2 | 16 | 5 |
| 510A992" | 2" | 16 | 5 |
| 510A993" | 3" | 16 | 1 |
| 510A994" | 4" | 16 | 1 |
Related products

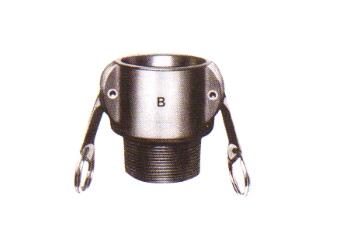

CAMLOCK TYPE B
This type of fitting has been designed for the quick and safe connection between two pipes in the shortest possible time...

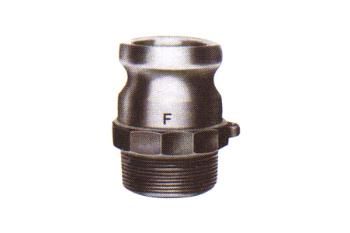

CAMLOCK TYPE F
This type of fitting has been designed for quick and safe joining in the shortest possible time between two pipes. by in...

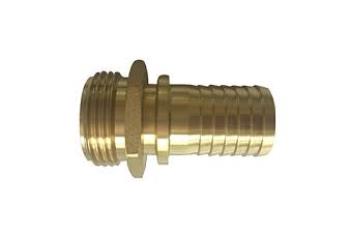

1109 ROMA MALE HOSE PORT
Yellow brass fitting conical bsp male threaded hose fitting 'roma' type item th style="text-al

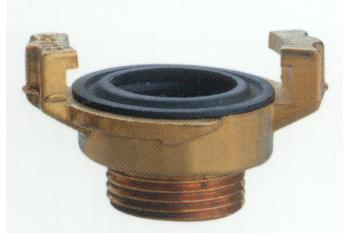

3705 MALE QUICK FITTING 'QUICK'
