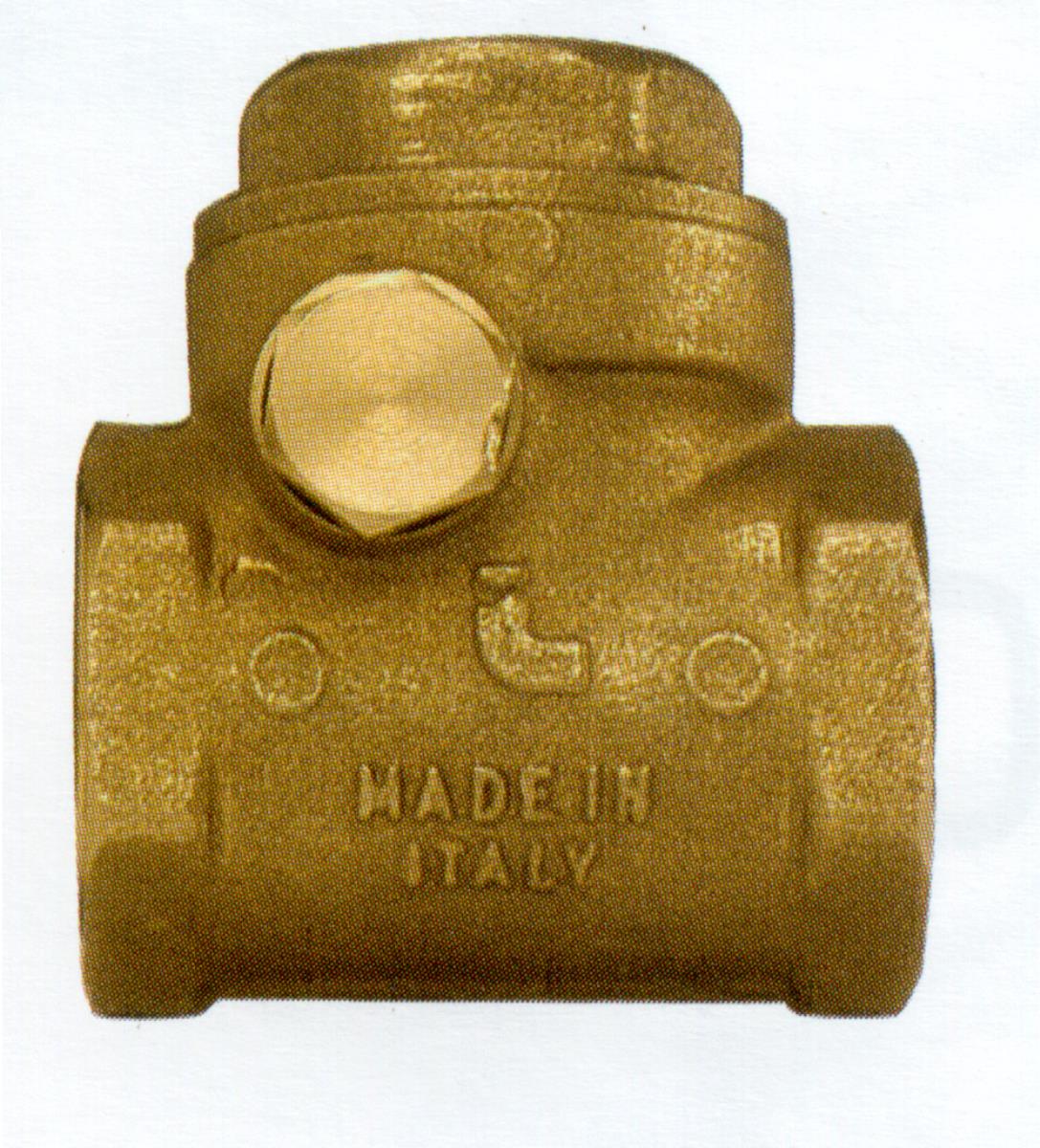

Code: 146
Brass body,
O-ring on top cap and side cap in NBR.
Brass knocker.
Minimum and maximum operating temperatures: 0° +90°C
ISO228 threaded connections (equivalent to DIN EN ISO228 and BS EN ISO228)

Available from 3/8" 2" with NBR seal, from 3/8" to 4" with metal seal.

Available with American NPT thread in sizes 2"_1/2, 3" 2 4".


MEASURE RUBBER SEAT METAL SEAT
3/8" 16 16
1/2" 16 16
3/4 12 12
1" 8 8
1"_1/4 5 5
1"_1/2 4 4
2" 2 2
2"_1/2   1
3"   1
4"   1
