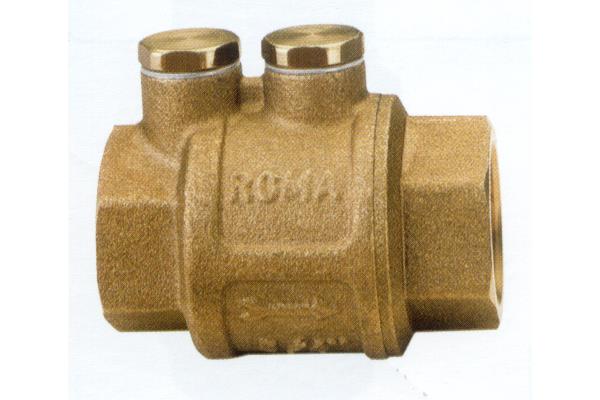

CHECK VALVE ROMA
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › BRASS CHECK VALVES
Download sheet in pdf format
Code: 165
One-way non-return check valve for the passage of agricultural-industrial liquids. Permanently usable in all positions.
Ideal for hot/cold water, various oils and compressed air, PETROL and hydrocarbons in general.
Use temperature: -15° 100°C with water
-15° 150°C with fluid hydrocarbons or compressed air.
Body in nickel-plated brass OT CW 617N
AISI 304 stainless steel metal plate.
Green VITON gasket.
Cap and guide pin in CW 614N brass.
Stainless steel spring - AISI 302.
CW 614N brass breather caps, aluminum cap gaskets.
Threaded connection: ISO 228
One-way non-return check valve for the passage of agricultural-industrial liquids. Permanently usable in all positions.
Ideal for hot/cold water, various oils and compressed air, PETROL and hydrocarbons in general.
Use temperature: -15° 100°C with water
-15° 150°C with fluid hydrocarbons or compressed air.
Body in nickel-plated brass OT CW 617N
AISI 304 stainless steel metal plate.
Green VITON gasket.
Cap and guide pin in CW 614N brass.
Stainless steel spring - AISI 302.
CW 614N brass breather caps, aluminum cap gaskets.
Threaded connection: ISO 228
| Code | Measures | Pressure Cafe | packaging |
|---|---|---|---|
| 510165003/8 | 3/8" | 25 | 10 |
| 510165001/2 | 1/2" | 25 | 10 |
| 510165003/4 | 3/4" | 25 | 8 |
| 5101651 | 1" | 25 | 6 |
| 5101651-1/4 | 1"1/4 | 18 | 4 |
| 5101651-1/2 | 1"1/2 | 18 | 4 |
| 5101652 | 2" | 18 | 21 |
